Kramer VP-470 3G HD-SDI ProScale Digital Video Scaler Converter

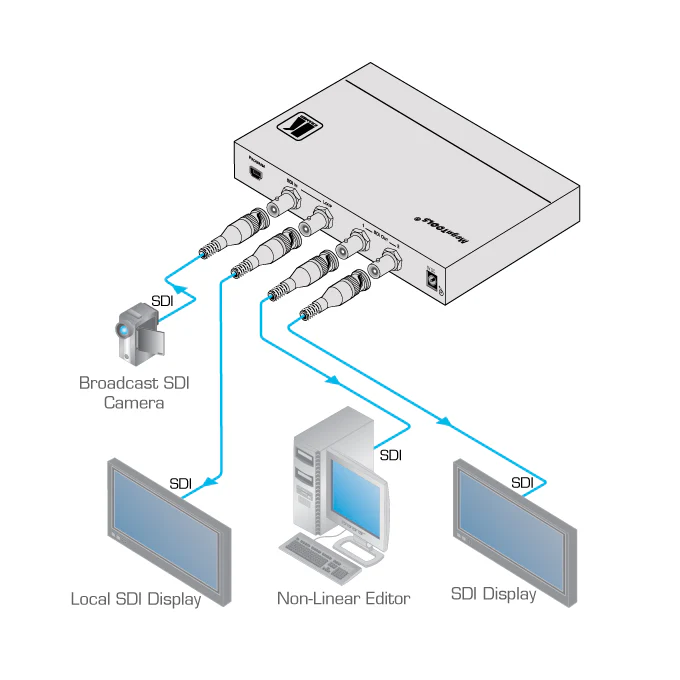

The Kramer VP-470 is a high-performance digital scaler designed for 3G HD-SDI signals. This professional-grade device efficiently up- or down-scales incoming SDI signals to resolutions up to 1080p, ensuring compatibility across diverse broadcast and AV environments. It features a looping input that is both reclocked and equalized for signal integrity, alongside two identical SDI outputs for flexible routing. Integrated ProcAmp controls allow for precise adjustments of color hue, sharpness, contrast, and brightness to meet specific visual requirements. The unit includes non-volatile memory to save final settings and supports USB firmware upgrades for future-proofing. Housed in a compact MegaTOOLS chassis, it is ideal for space-constrained installations in boardrooms, conference centers, hotels, and home theaters. On-screen display and front panel buttons provide intuitive control over operational parameters.

Data Rate	3Gbps
Standards	SDI (SMPTE 259M), HD-SDI (SMPTE 292M), 3G HD-SDI (SMPTE 424M)
Input	1 x 3G HD-SDI (Looping, Reclocked, Equalized)
Outputs	2 x 3G HD-SDI
Resolutions	Up to 1080p
Controls	Front panel buttons, OSD
Dimensions (Imperial)	8.45" x 6.42" x 1.72"
Weight (Imperial)	0.88 lbs
Power	5V DC
