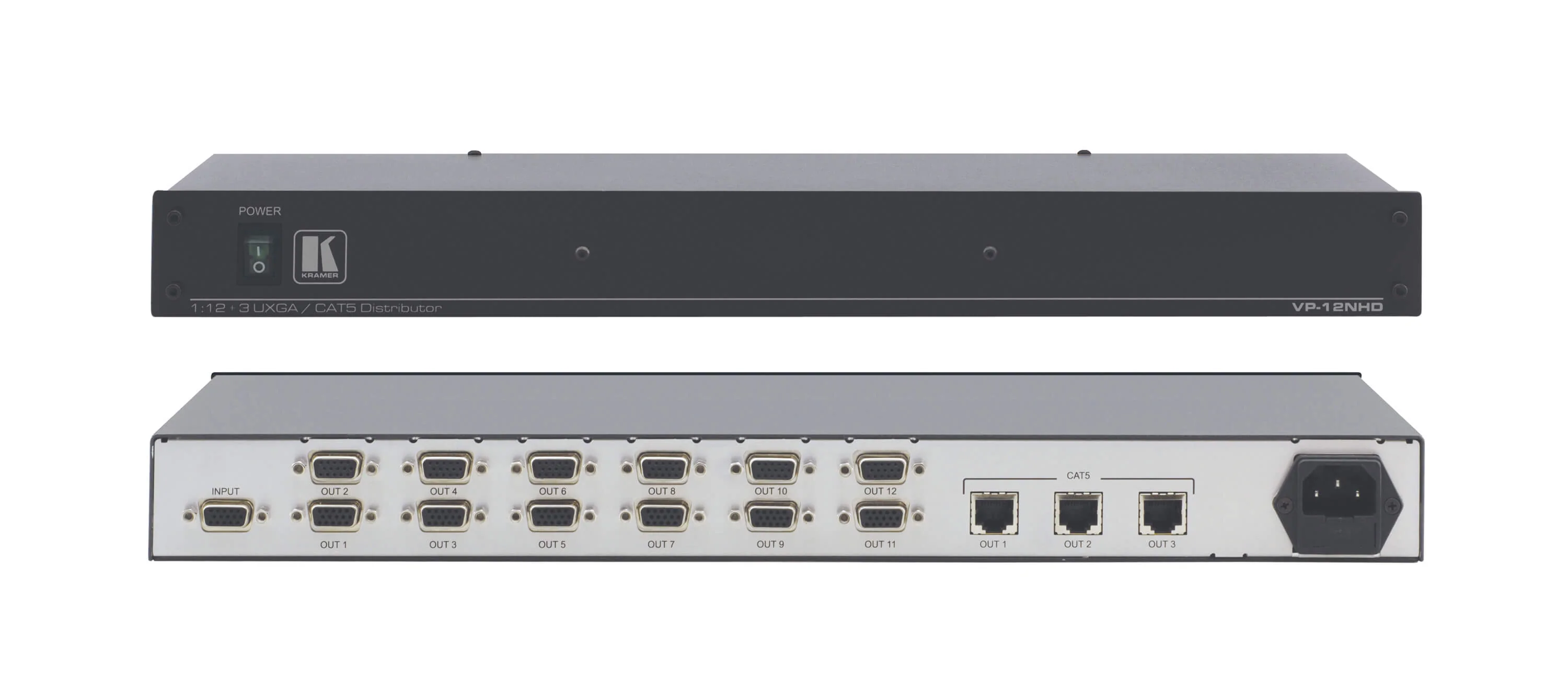

Kramer VP-12NHD 1:12 Computer Graphics Video HDTV Distribution Amplifier

The VP-12NHD is a high-performance distribution amplifier engineered for computer graphics and HDTV signals. It features one input, providing precise buffering and isolation, while distributing the signal to twelve 15-pin HD outputs and three twisted pair outputs. Designed for flexibility, it includes sync polarity settings to improve display compatibility with CAT 5 outputs. The integrated Power Connect™ system allows a single transmitter connection to power all receivers within a 50-meter range. Featuring a 330MHz bandwidth and support for resolutions up to WUXGA and 1080p, it ensures signal integrity over long distances up to 100 meters. This 1U rack-mountable unit is an ideal solution for multimedia applications in schools, hospitals, and security environments.

Bandwidth	330MHz (-3dB)
Max Resolution	WUXGA & 1080p
Input	1 x 15-pin HD
Outputs	12 x 15-pin HD, 3 x RJ-45 (Twisted Pair)
Range	Up to 100m (328ft)
Power Connect System	Yes
Rack Size	1U
Connector Type	15-pin HD, RJ-45
